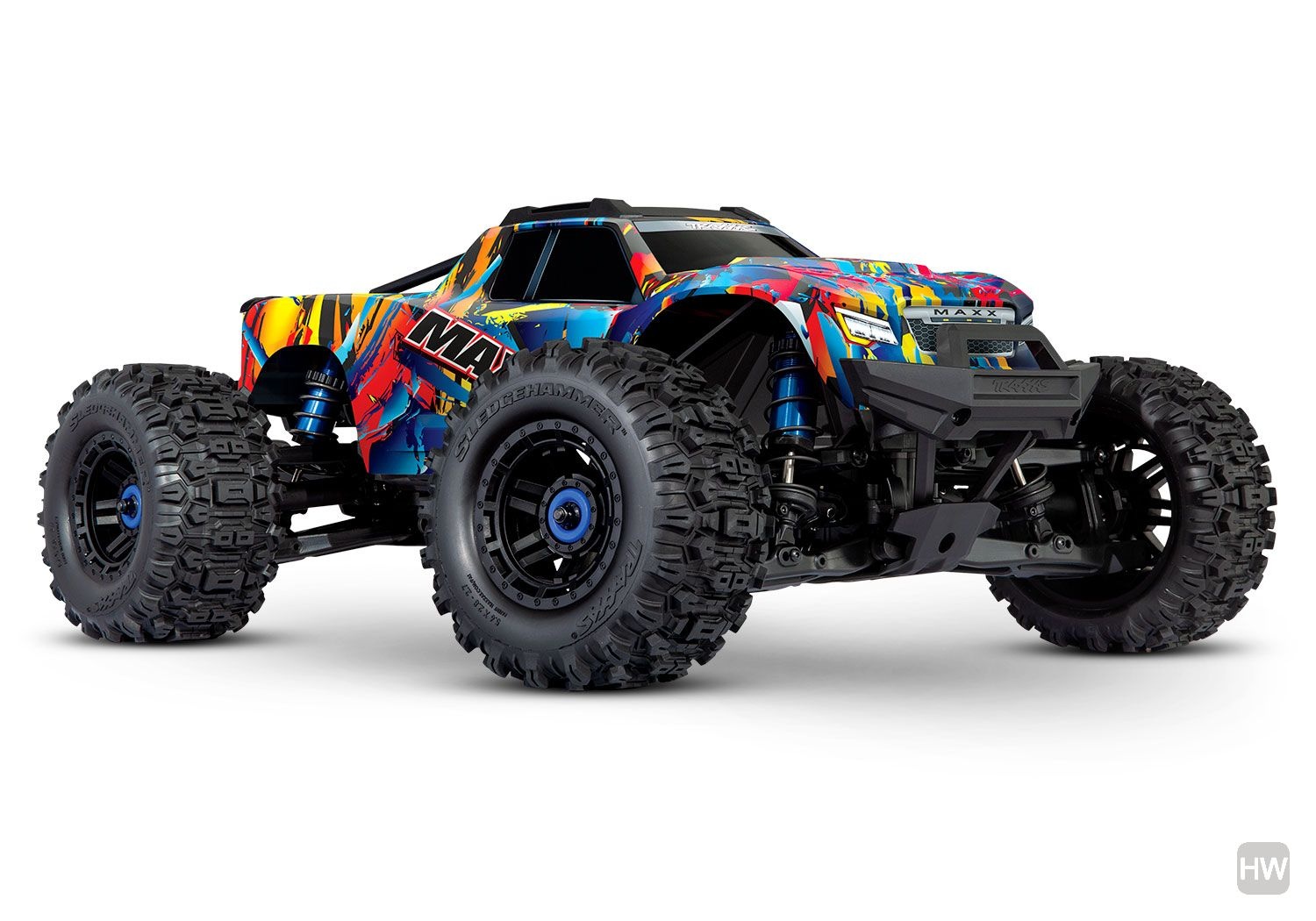

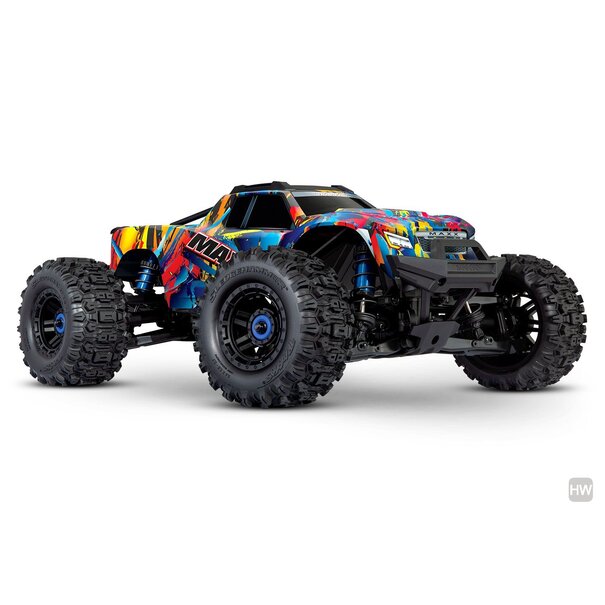

Maxx 4S V2 - 1/10 Scale 4WD Brushless Monster Truck w/ WideMaxx Kit - RNR

VXL-4s™ Waterproof Electronic Speed Control

• 3S–4S LiPo compatible
• Built-in cooling fan
• Real-time telemetry via Traxxas Link™
• Machined heat sinks
• 10-gauge silicone wire
• Integrated protection circuits
• LED status lights
• Waterproof

Velineon® 540XL Brushless Motor

• Long format brushless motor
• 4-pole 2400 kV
• 5mm output shaft
• Aluminum heat sink
• Cooling fan

55+ MPH out of the box using single 4S LiPo battery (sold separately)

60+ MPH with optional gearing and single 4S LiPo battery (sold separately)

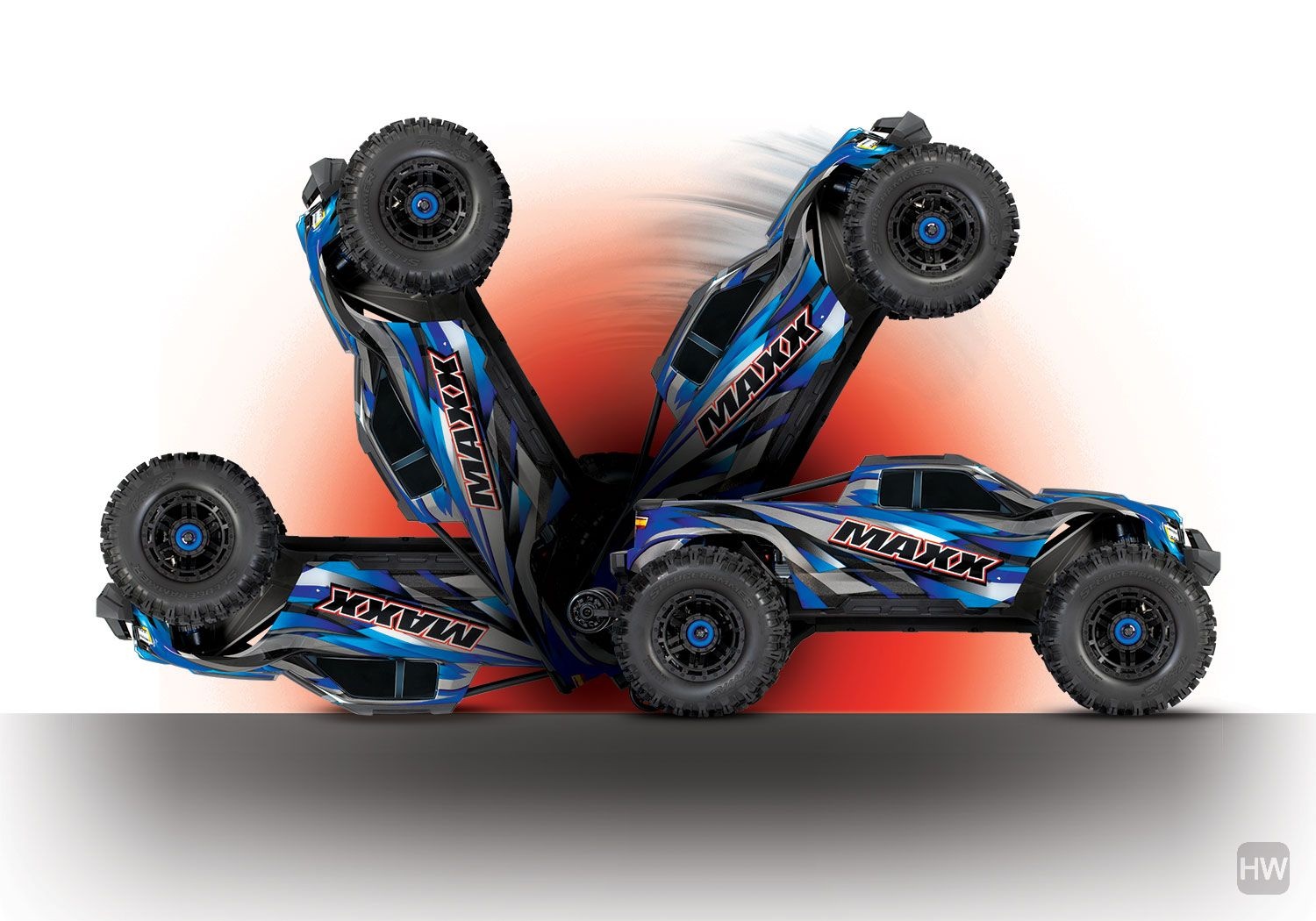

Traxxas Stability Management™

• Helps prevents spinouts and loss of control
• Adjusts from off to 100% assistance from the transmitter

TQi™ 2.4GHz High Output Radio System

• TQi™ 2.4GHz transmitter
• Traxxas Link™ enabled
• TQi 2.4GHz 5-channel micro receiver (#6533) with fail-safe security and integrated telemetry ports
• Automatically stores and loads settings for up to 30 Traxxas Link-enabled models—just switch on and drive, “model selection” is not required
• Multi-Function knob
• Adjustable steering and throttle percentage (dual rates)
• Adjustable steering and throttle sensitivity (exponential)
• Adjustable steering and throttle end points
• High 13ms frame rate and near-zero latency for responsive control
• Telemetry-ready 5-channel micro receiver

Clipless Body Mount System

• Quick one-hand installation and removal
• Uses pivoting rear latch mechanism
• Eliminates body posts and clips
• Reinforced for extra protection against tearing

Drivetrain

• Full-time shaft-driven 4-wheel drive
• Torque-Biasing Center Drive™ absorbs shocks and distributes power
• 17mm keyed wheel hex with 5mm nut
• Sealed, silicone fluid-filled diffs with large module ring and pinion gears
• Heavy-duty Cush Drive™
• Extreme-duty telescoping driveshafts
• Splined aluminum center driveshaft

Secure Motor Mounting System

• Precise, fixed gear mesh adjustments
• Motor retention separate from gear mesh
• Full-length motor cradle

New Modular Composite Chassis

• Extended modular chassis design interlocks with front and rear bulkheads
• Absorbs and distributes impact energy
• Easy to service and access components
• Driveline is sealed in the chassis to keep out dirt and grit

Easy Battery Access

• Extended battery tray accepts Traxxas’ largest 6700mAh 4-cell LiPo battery
• Battery is protected deep in the chassis
• Battery hold-downs pivot for easy access
• More secure than conventional retention systems

Heavy-Duty Steering Bellcranks and Servo

• Large-scale high-output steering servo
• 285oz-in of torque
• 0.18 sec transit speed
• Triangulated mounting system to fully support case
• Heavy-duty double-shear bellcranks

Suspension

• WideMaxx® double-shear suspension arms
• 1.57” (40 mm) wider for improved handling
• Tough new composite formula resists impact damage, even in cold weather
• Engineered to optimize suspension travel and steering angles
• All critical suspension points have double shear strength
• Steel pivot balls
• C-hub and steering block geometry maximizes steering angle
• Fixed, high-strength camber and toe links
• Steel upper and lower tie bars
• Full contact sealed bearings used throughout driveline

GT-Maxx® Shocks

• Machined aluminum threaded body
• Extra-large bore and capacity
• Large-diameter damper shaft
• Lower seal cartridge with dual X-rings
• Adjustable upper spring retainer
• Plastic shock caps with pivot balls
• Lower spring perches bolted on

Bumpers

• Tough energy absorbing front and rear bumpers
• Lower front and rear skids for impact and abrasion resistance
• Integrated nerf bars for side impact resistance
• Wheelie bar with integrated carry handle

Wheels/Tires

• Tough 2.8” wheels with keyed 17mm hex receptor
• Sledgehammer® extreme tires for sure-footed traction
• 1-piece foam inserts
• Pre-glued and ready for action
• TSM™ rated

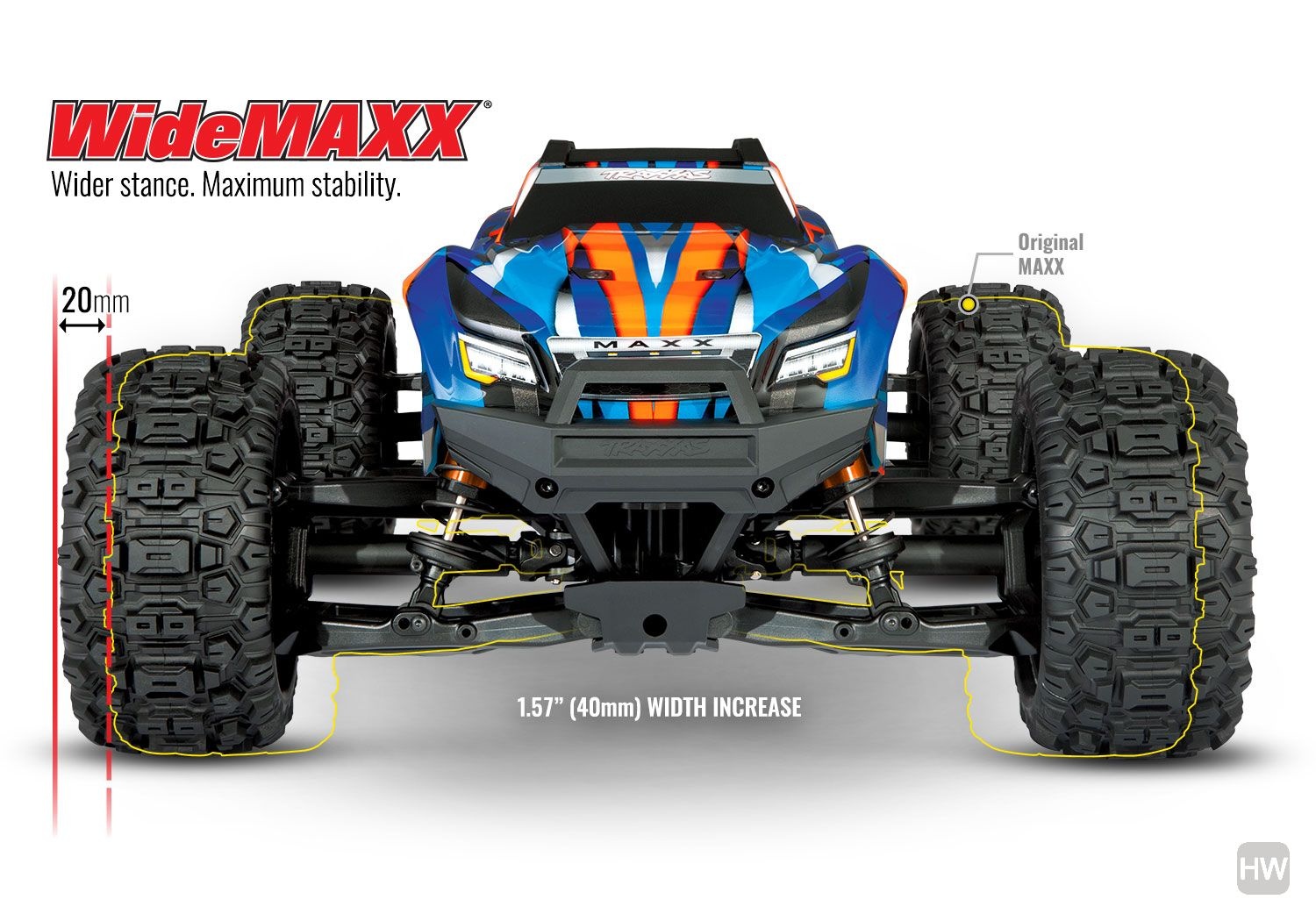

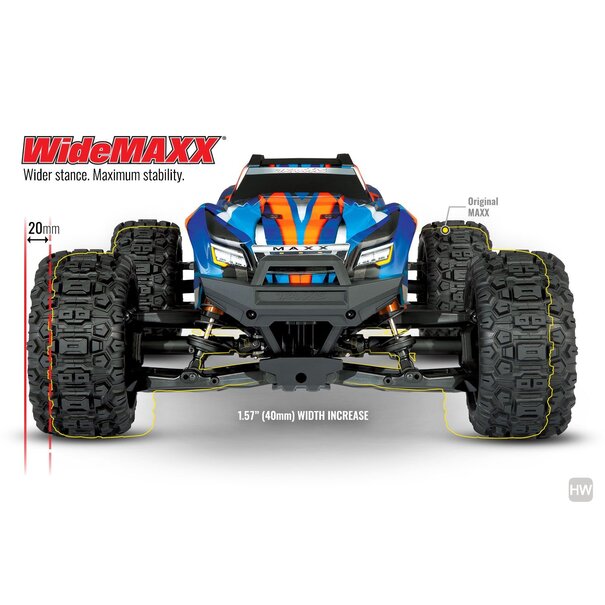

WideMaxx stance stretches the wheels out over 1.5 inches (40 mm) wider for even greater stability.

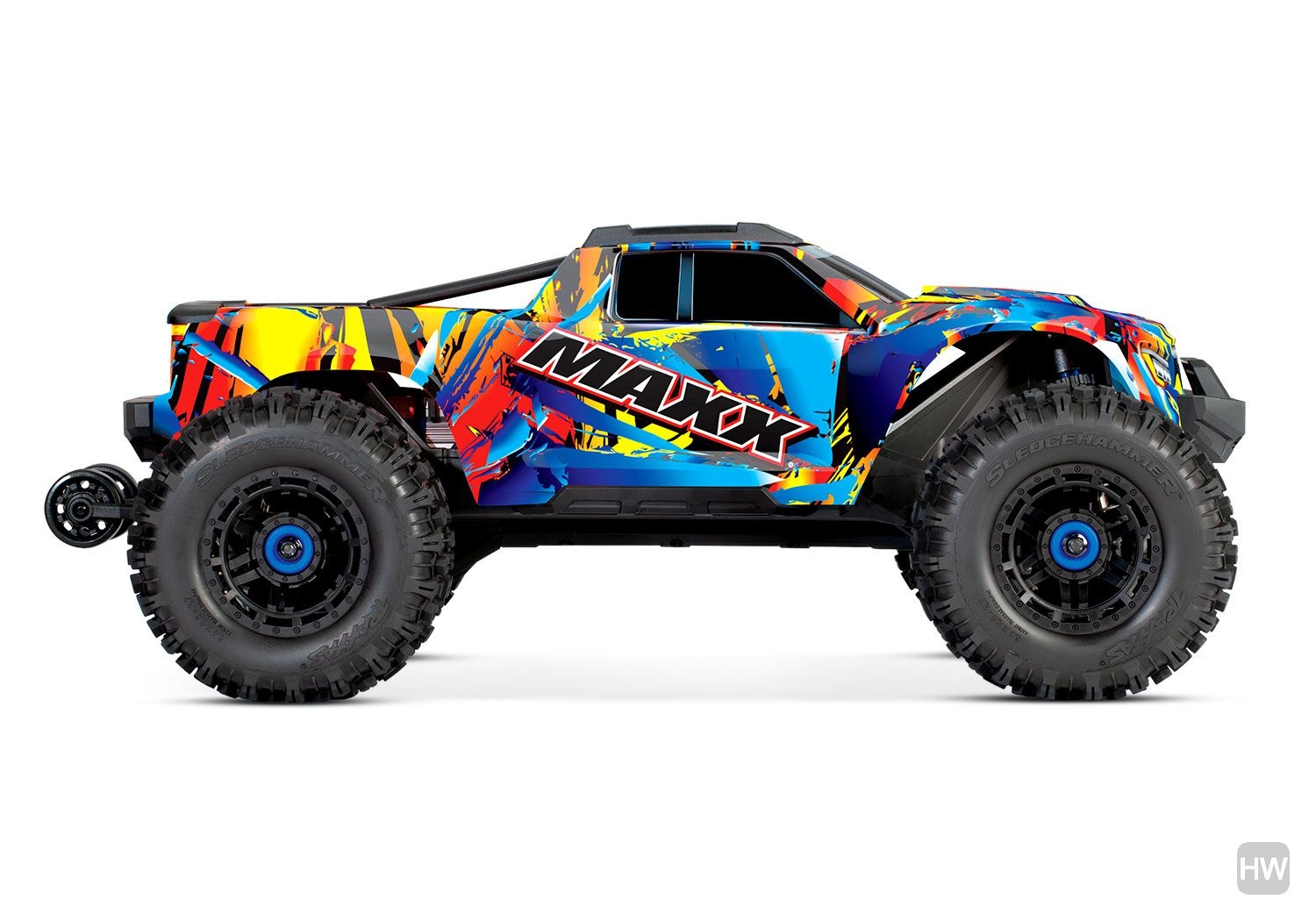

The extended chassis length now accommodates our most powerful batteries, the same 6700mAh 4-cell LiPo batteries used in the X-Maxx.

Taller Sledgehammer tires feature an aggressive open-block tread design that clears away mud and debris for unrivaled traction.

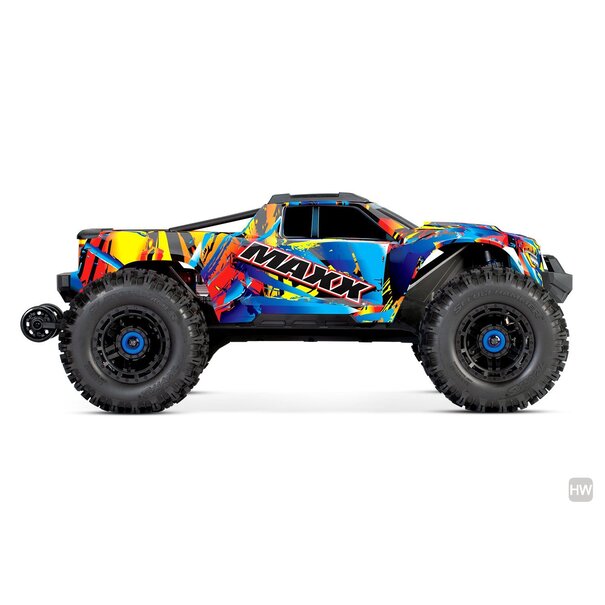

Maxx makes a statement with six all-new ProGraphix® clipless bodies with our brightest and boldest color options yet.

Maxx turns up the dial on fun with even more of what you crave. The new Maxx doubles down on strength and durability with a longer and wider stance for greater stability to match its blistering 60+ mph performance. Bury the throttle, fly through corners, and let the new Maxx turn your wildest full-throttle dreams into reality.

Traxxas Velineon® brushless power hits hard with massive 4s punch for an awe-inspiring 60+ mph top speed and effortless wheelies on demand. The high-output 540XL motor features a beefy 5 mm shaft, aluminum heat sink, and a powerful fan. Of course it’s all fully protected with Traxxas’ innovative waterproofing.

Maxx is overbuilt with components found on much larger and heavier vehicles to withstand extreme punishment and intense driving action. The Maxx chassis absorbs and dissipates impact energy across the entire structure for superior strength. Huge threaded-aluminum GT-Maxx shocks with oversized shafts soak up massive jumps for high-flying fun at every turn.

Outfitted with Traxxas’ legendary Sledgehammer tires, Maxx is ready for action with multiple layers of biting edges for sure-footed traction on just about any surface. The Sledgehammer’s heavy duty rubber compound is specially formulated to resist tearing and bonds exceptionally well with Traxxas’ Ultra Premium tire glue. The 2.8” wheels have a large glue surface for bead mounting and utilize a 17 mm hex mounting pattern with a flanged locknut.

Maxx is built for all-day action with a full length motor cradle to fully support the 540XL motor and eliminate gear-crunching flex. The innovative fixed gear mesh system precisely sets the gear mesh with fixed pins so you can focus on driving and having fun and never have to worry about gear mesh adjustment.

Maxx’s integrated shock towers are part of the chassis and produce a rigid, triangulated structure for secure mounting of the shocks and body. They also provide an authentic off-road look that fills in the wheel openings of the truck. Sometimes the landing after a jump does not go as planned, so the upper shock mounts are shrouded for protection against impacts and grinding.

Waterproofing our models has never been an afterthought at Traxxas. Patented Traxxas innovation seals out the water so that your playground is extended through water, snow, and mud. Dirty truck? Just hose it off. The new style box allows fast radio access without removal.

The steering servo in Maxx is the same size as the steering servo used on the giant X-Maxx. With 285oz-in of torque, it has strength and power in reserve for fast response and incredible steering authority.

The Maxx’s extended chassis now accommodates our largest Power Cell 6700mAh 4-cell LiPo battery from the X-Maxx® for extended run times and even more thrills. The snap-lock retainer keeps a secure grip on the battery, but releases in seconds.

The four extra-large bore, oil-filled GT-Maxx shocks provide super plush damping even on the roughest terrain. Extra-large diameter shock shafts move smoothly through the double X-ring seals for responsive damping. Machined aluminum bodies are threaded to adjust ride height while the lower spring retainers are captured by screws to keep them secure, even on the harshest landings.

The Maxx’s oversized double wishbone suspension arms maintain proper suspension geometry throughout the entire range of travel. Double-shear connections and extra-thick steel upper and lower tie bars provide incredible strength and impact resistance. Tough new composites further resist impact damage, even in cold weather.

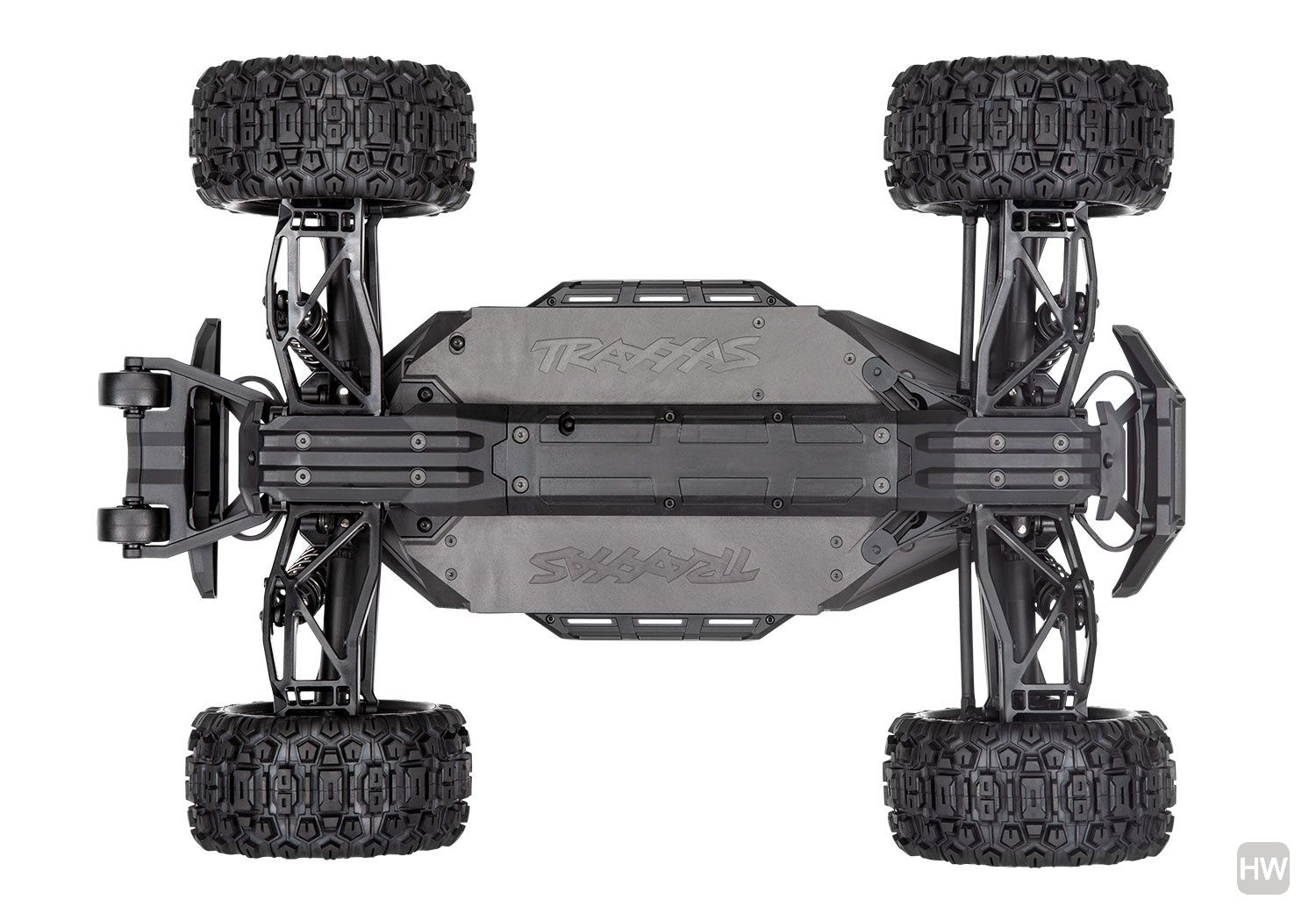

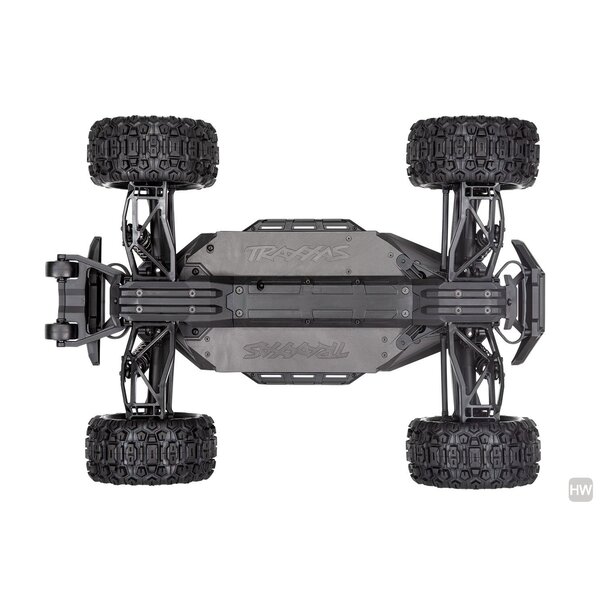

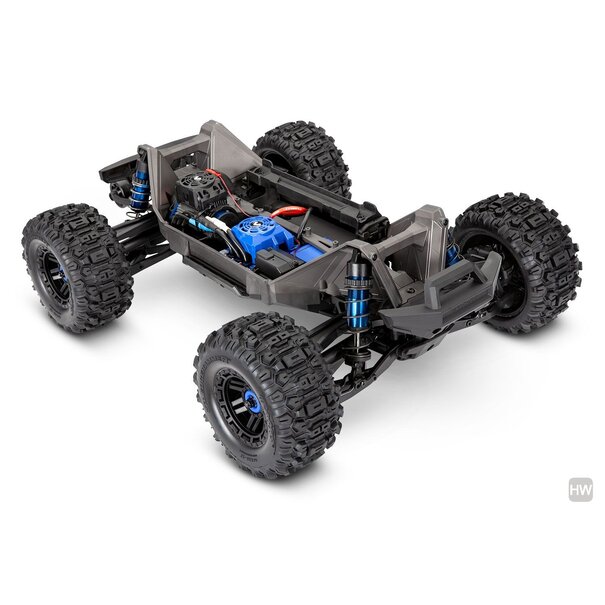

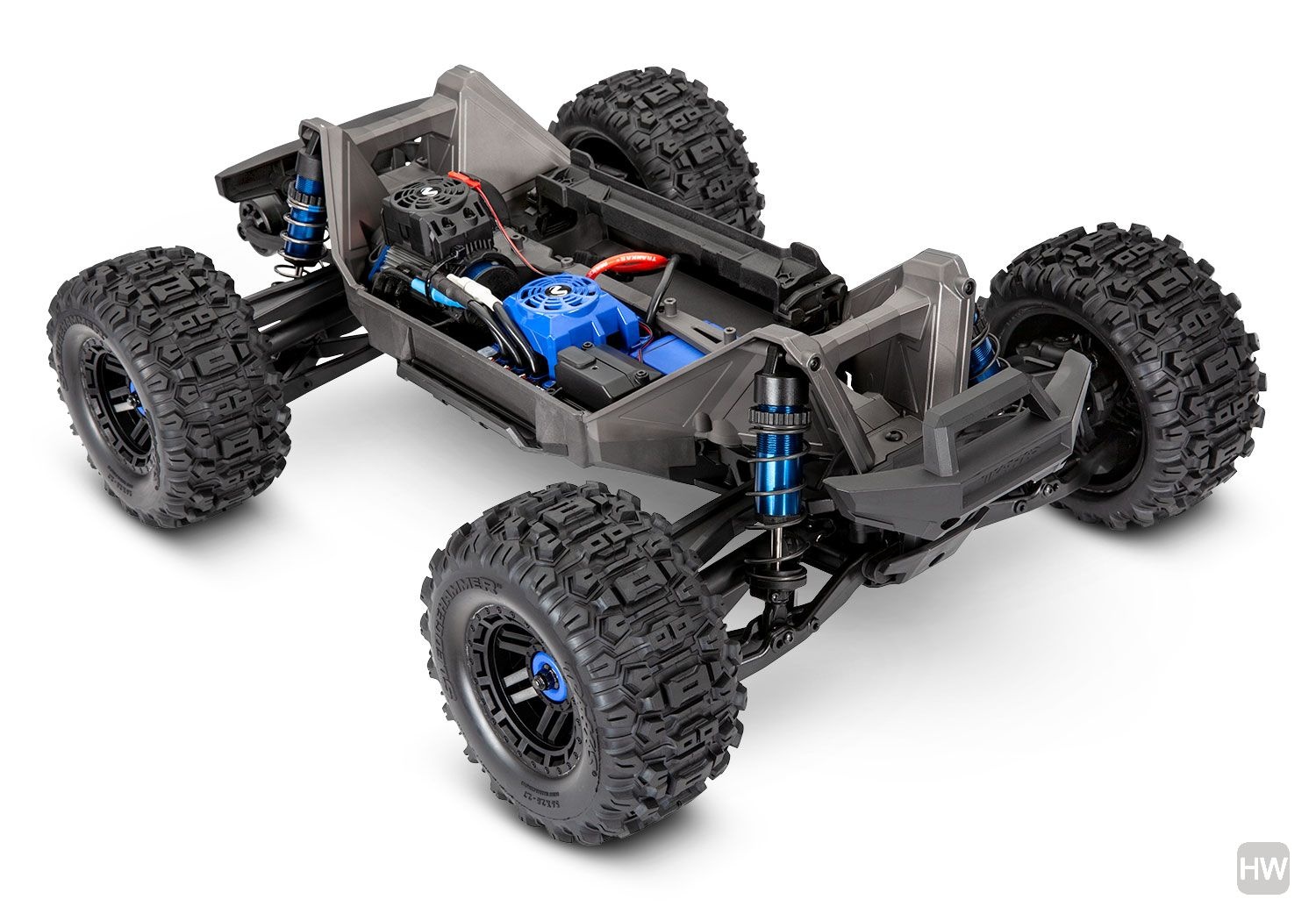

The interlocking chassis design ties the shock towers, front and rear modules, and the main frame into a single rigid platform that is engineered to absorb and dissipate impact energy across the entire structure. Critical driveline, radio, and battery components are protected to keep Maxx off the workbench and out having fun. Strategically placed tool access has been thoughtfully put in place to make any needed maintenance or repairs a snap to perform.

Maxx utilizes full contact sealed bearings throughout the driveline to keep out the grime and grit. Less downtime for cleaning and maintaining bearings equals more run time for the Maxx.

Traxxas’ innovative Cush Drive™ uses a special elastomer damper to absorb driveline shocks at the spur gear for superior reliability. Because there is nothing to slip or adjust, Cush Drive provides instant acceleration and throttle control.

The Torque-Biasing Center Drive absorbs shocks to improve driveline durability. The center drive also distributes power to all four wheels for mind-bending four-wheel drive acceleration without the side effects of a typical center differential. Center differentials allow tires in the air to balloon uncontrollably, while the Torque-Biasing Center Drive allows wheelies off the line with seamless power distributed to all four wheels.

A new thick-wall, heavy-duty, splined aluminum center driveshaft carries the power to the front and rear differentials. This heavy-duty driveshaft yields precise engagement, incredible strength, and smooth running.

Traxxas telescoping splined driveshafts benefit from years of Traxxas design evolution for durable, smooth-running performance you can count on. These extreme-duty driveshafts maximize suspension travel and steering angles to radically extend the Maxx performance envelope.

The Maxx’s 4-gear differentials are sealed and filled with heavyweight oil, which provides a limited-slip effect for maximum traction on loose surfaces. The reinforced differentials use the same design as E-Revo® 2.0 along with 7mm output shafts. Large-pitch, large-diameter, steel ring and pinion gears are installed for ultimate reliability.
